ProdCheck — User Manual

A kiosk-style production-floor tracker. One device per work area, signed in to your organization, with each worker tapping in by 4-digit PIN. This page is the same content as the GitHub manual; either is fine.

Introduction #

What is ProdCheck #

ProdCheck replaces the spreadsheet-on-a-clipboard workflow that supplement manufacturers run their floors on. A batch is created once, flows through a defined route of stages (Picking → Mixing → Filling → …), and every state change is recorded immutably. Workers see only the stages they're assigned to; managers see the whole floor; QC inspectors see what needs their gate; admins manage the org.

Concepts #

• Organization — the tenant. One email account owns it; multiple email accounts can be invited as members.
• Worker — a person who taps in via PIN. Has a role (Worker, QC inspector, Manager, Admin) and, for the Worker role, a list of stages they're assigned to.
• Product + MMR — what you're making and the recipe (Master Manufacturing Record). One MMR per batch.
• Batch — a single production run. Has units (size), delivery date, and spec values.
• Stage — a single step in the route. Each stage on a batch has a state (Pending → In Progress → Done, or Blocked / etc.).
• Template (route preset) — pre-built routes (Capsule, Tablet, Sachet, Softgel) with which stages need QC and which spec fields apply.

Roles at a glance #

Authentication #

Sign in #

Open the app and sign in with your organization's email + password.

New here? Click Register on the home page to create an org. The first worker created during sign-up is the Admin, with the PIN you choose.

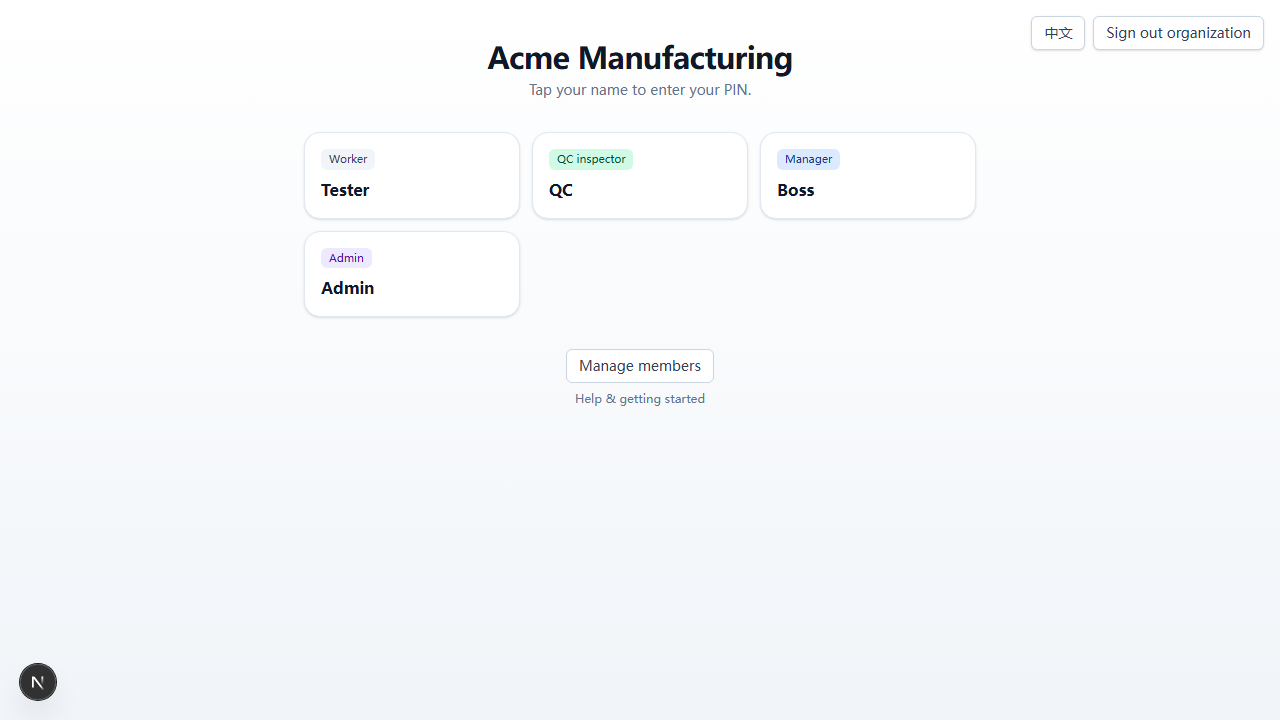

Lock screen #

After signing in you land on the lock screen. Every active worker shows as a tile, color-coded by role. The org email stays signed in for the whole shift; individual workers tap a tile and type their PIN.

At the top of the lock screen there's a Sign out organization button. Below the tiles, Manage members opens the member list (admin only) and Help & getting started opens this manual.

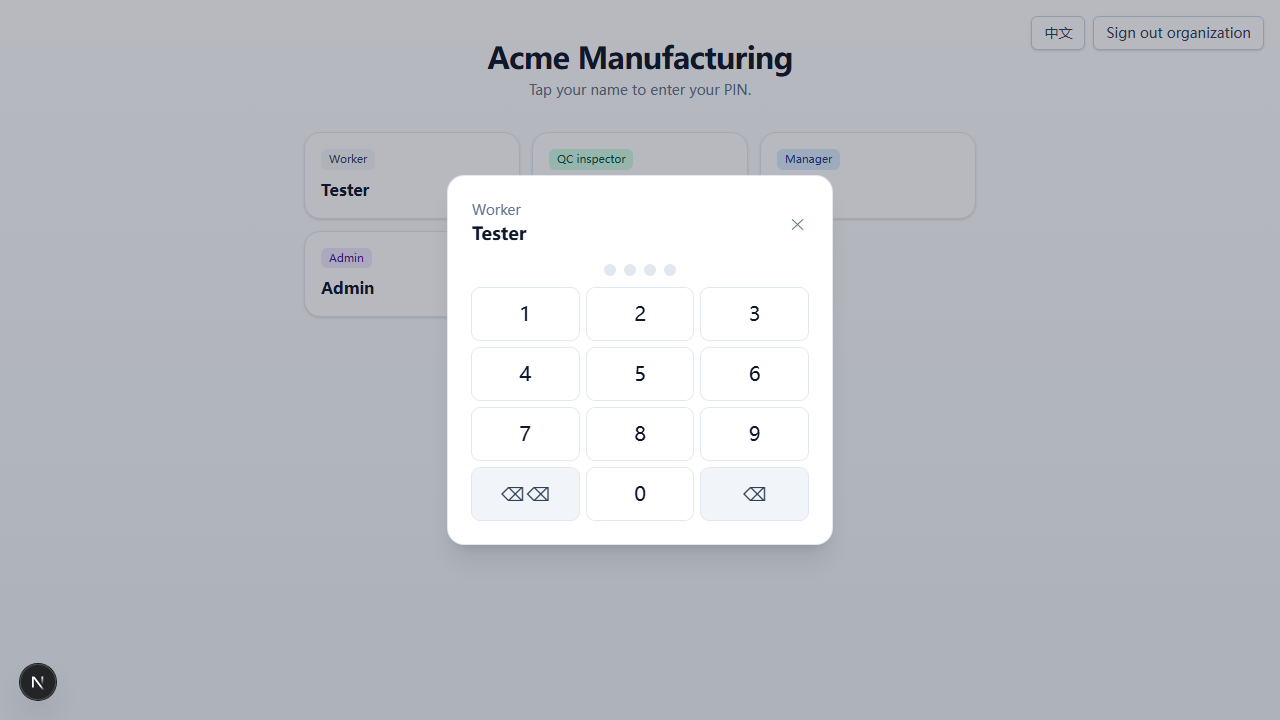

PIN entry #

Tap your tile, type your 4-digit PIN. The form auto-submits when the fourth digit lands.

After successful PIN entry, you're routed to:

• Worker → /queue
• QC inspector → /queue
• Manager → /manager/dashboard
• Admin → /admin/workers

Sign out #

The header has a Sign out dropdown with two options:

• Sign out user — drops the worker session, returns to the lock screen with the org still signed in. Use between workers.
• Sign out organization — full sign-out, returns to home. Use at end of shift.

Language toggle #

Top-right of every page toggles between EN and 中文. Setting persists per browser via cookie. The toggle reloads the current page so every server-rendered label flips on the spot.

See also: Introduction · Members

Worker — the floor #

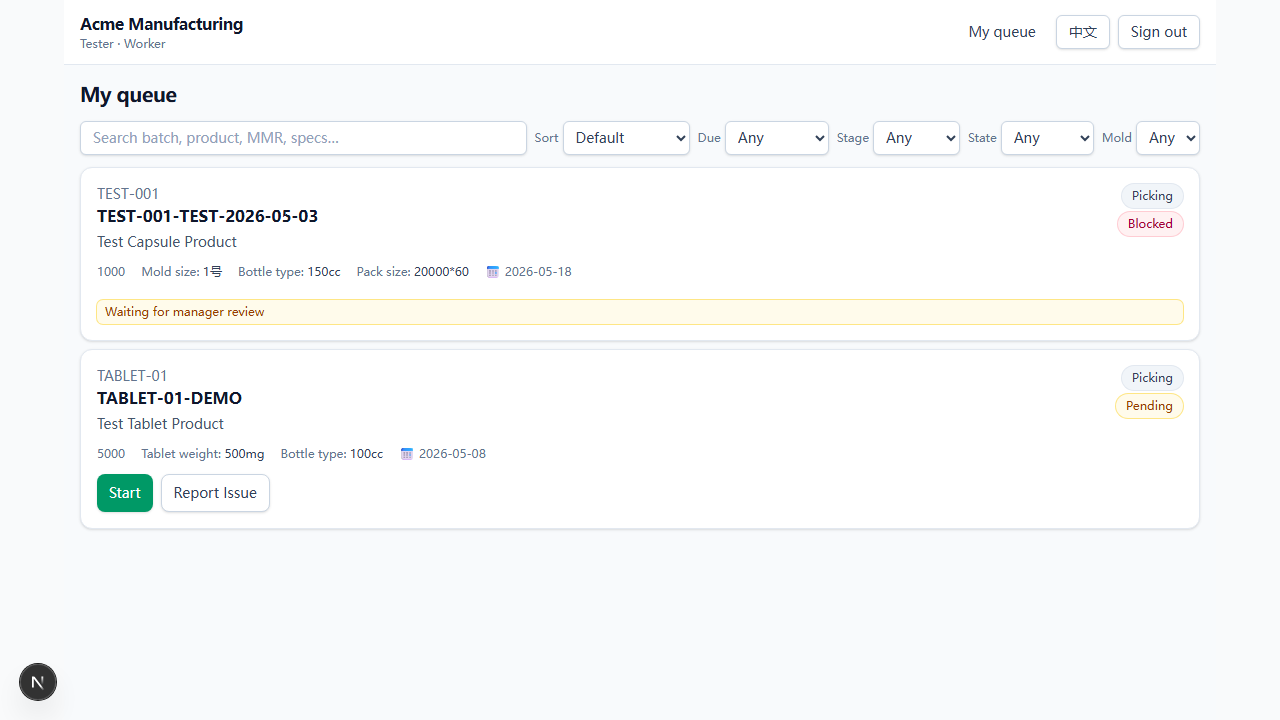

My queue #

/queue shows the current stage of every batch the worker is assigned to, one card per batch. The worker can only see stages on their assignments list.

Each card surfaces:

• Product code, batch code, product name
• Stage badge + state badge
• Order size (units)
• Spec values (mold size, bottle type, pack size, etc. — depends on template)
• Delivery date (📅)
• Action buttons appropriate to the current state

State buttons #

The buttons depend on the card's current state:

Report Issue #

If the worker can't proceed (missing material, defect, equipment issue), they tap Report Issue. The card flips to Blockedimmediately. The card stays in their queue (so they know what they reported) but the action buttons disappear, replaced by a yellow "Waiting for manager review" banner.

Blocked & waiting #

A Blocked stage waits for the manager to Resolve it. After Resolve, the state goes back to Pending; the worker can tap Start on their next refresh.

QC failures land here too: the QC trigger sets state=incomplete with notes "rework after QC fail", and the worker waits for the same Resolve.

Queue sort priority #

With Sort = Default, cards are ordered by attention priority so nothing slips below the fold:

1. In Progress (you're working on it now)
2. Blocked / Material Waiting / Material Missing
3. Coding (boxing mid-state)
4. Pending
5. Ready (terminal — rare in queue)

Within each group, oldest started_at first.

Realtime updates #

The queue subscribes to Postgres changes via Supabase Realtime. When something changes (manager Resolve, QC pass, another worker starts a card), the page auto-refreshes. No manual reload needed.

See also: Manager issue inbox · Filter bar

QC inspector #

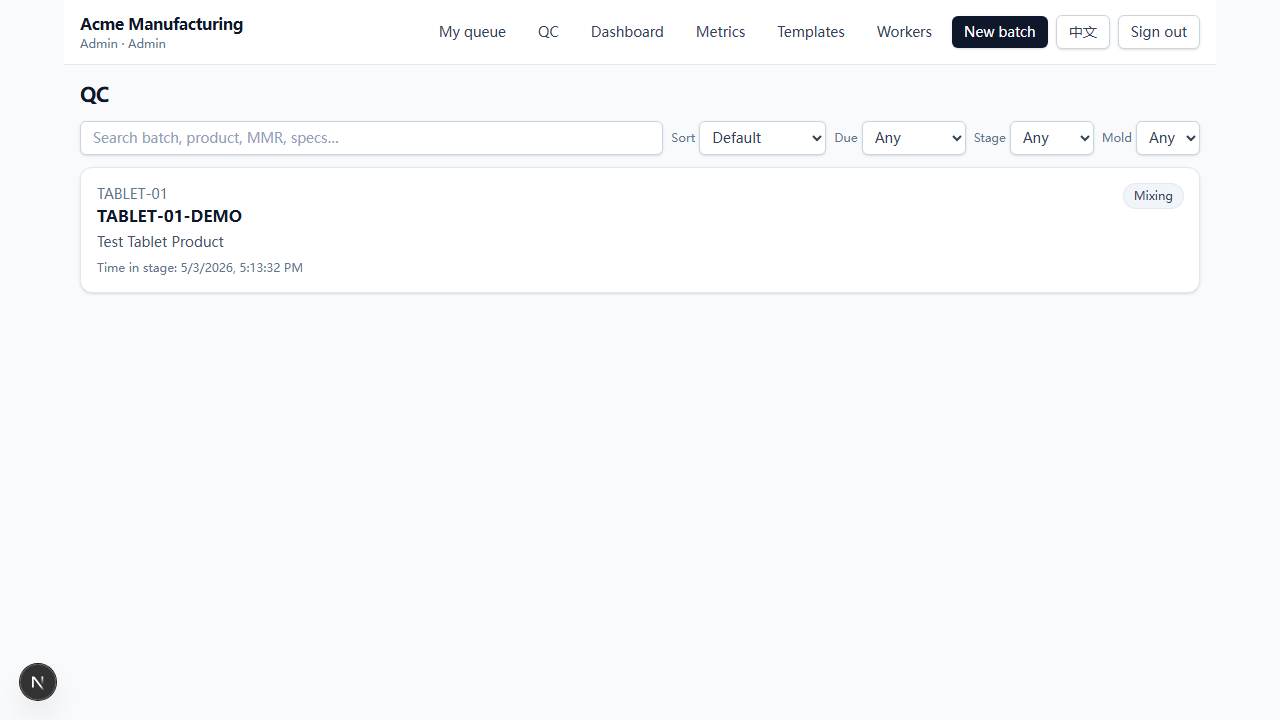

QC queue #

QC inspectors land on /queue, the same page everyone else uses. Their view filters to stages waiting for a QC decision: state=done+ qc_required=true + no decision yet. Ordered FIFO (oldest first). Each card carries a teal QC pending badge and a Review button. Admins see the same QC-pending cards interleaved with the issue inbox in their /queue; managers do not — QC is the inspector's lane.

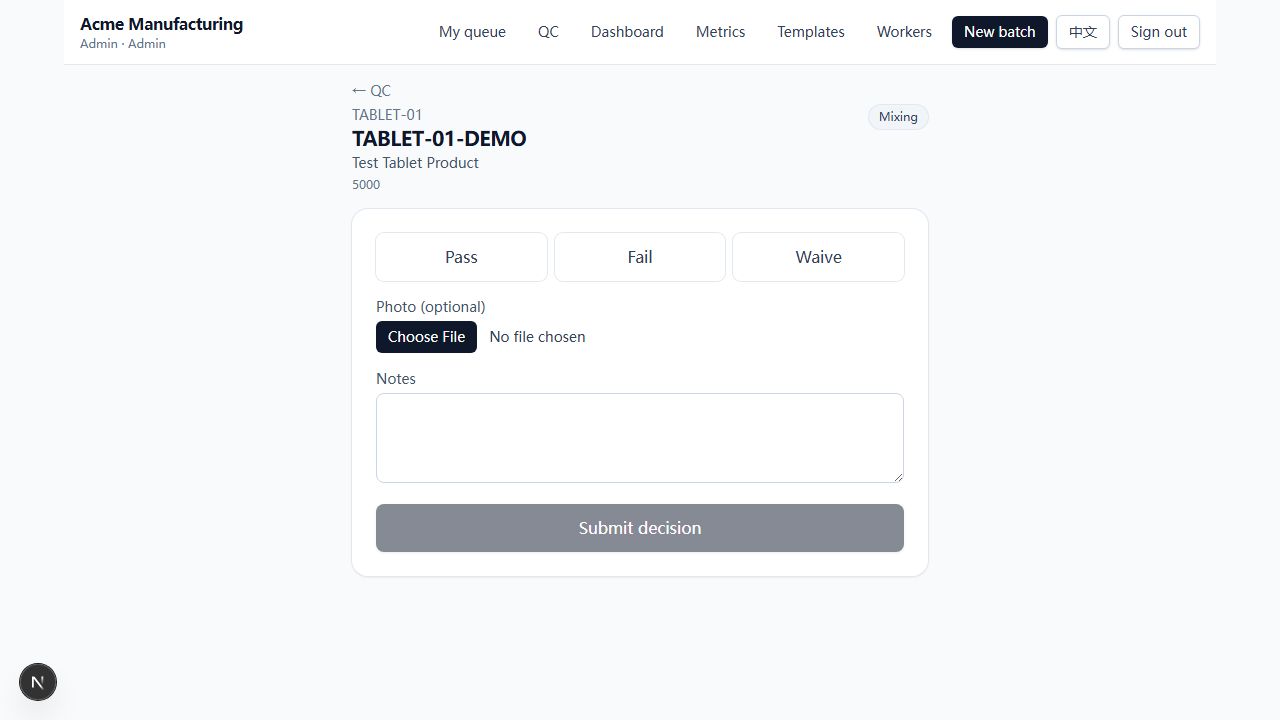

Decision page #

Tap Review on a card to open the decision page at /qc/[bspId].

Three buttons. Optional photo and notes. Submit when ready.

Photo upload #

Optional but recommended. JPEG / PNG / WEBP / HEIC accepted. The photo is saved to Supabase Storage at <org_id>/<batch_id>/<stage_code>/<uuid>.<ext> and the path is recorded on the qc_checks row. The photo is kept regardless of decision — including failures.

Pass / Waive #

• Pass — sets qc_status=pass. The route advancement trigger clears the gate; the next stage opens for the worker.
• Waive — sets qc_status=waived. Treated identically to Pass for sequential gating. Use when a lab certificate or external check covers it.

Fail & rework loop #

Fail resets the bsp: state_code=incomplete (Blocked), completed_at and qc_status cleared, notes set to "rework after QC fail". The original qc_checks row stays; failures are immutable in audit.

The flow:

1. Worker marks Done; QC inspector hits Fail.
2. Stage shows up in the manager's issue inbox with the rework note.
3. Manager hits Resolve → Pending. Worker re-runs.
4. Mark Done again → back to QC.
5. New qc_checks row records the retest decision.

Audit immutability #

Every QC decision (Pass, Fail, Waive) creates a row in qc_checks that is never deleted. The full decision history per stage is queryable forever.

See also: Manager issue inbox · Audit event kinds

Manager #

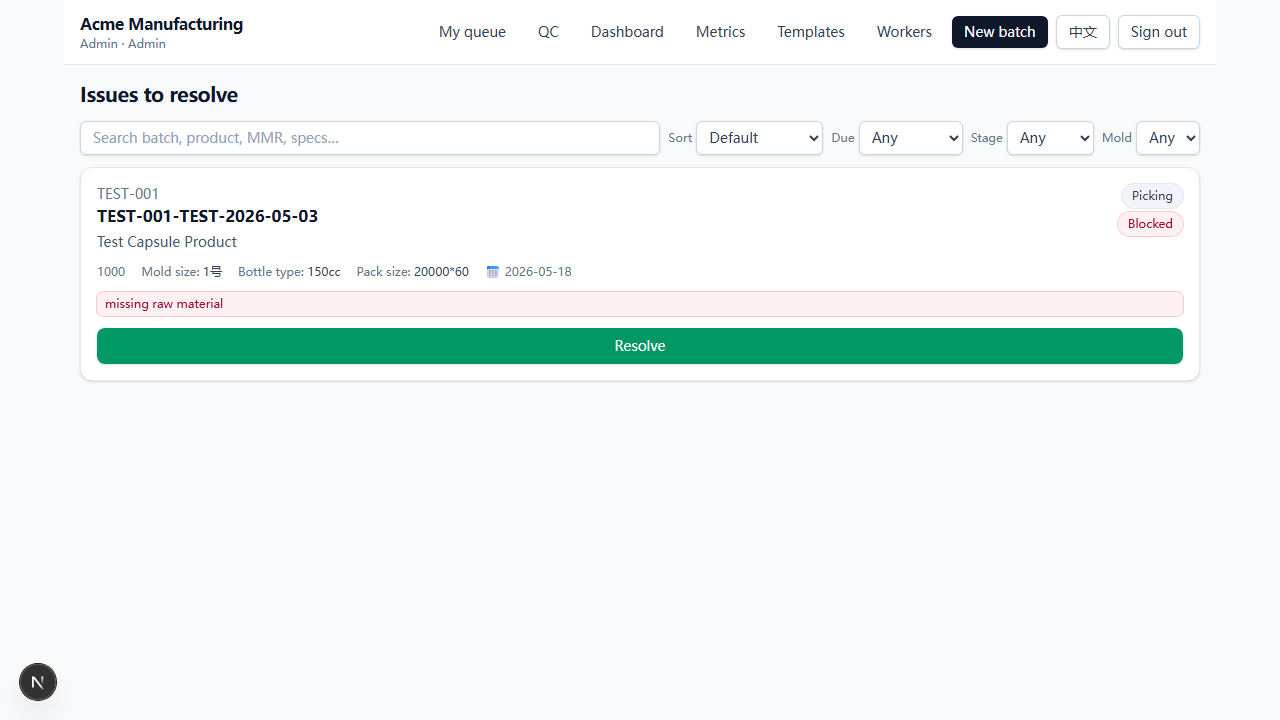

Issue inbox (My queue, manager view) #

When you (manager or admin) visit /queue, you don't see the worker's view — you see the issue inbox: stages parked at Blocked, across the whole org. Each card surfaces the issue note (worker's reason or "rework after QC fail") and a single big Resolve button.

Admins also see QC pending cards interleaved with the Blocked ones — same /queue, with a Review button leading to the QC decision form. Managers don't see QC cards here; chase a stuck QC via the dashboard or batch detail instead.

Resolve flow #

Resolve sends incomplete → pending. The trigger clears any stale timestamps and qc_status. The worker sees Start again on their next refresh.

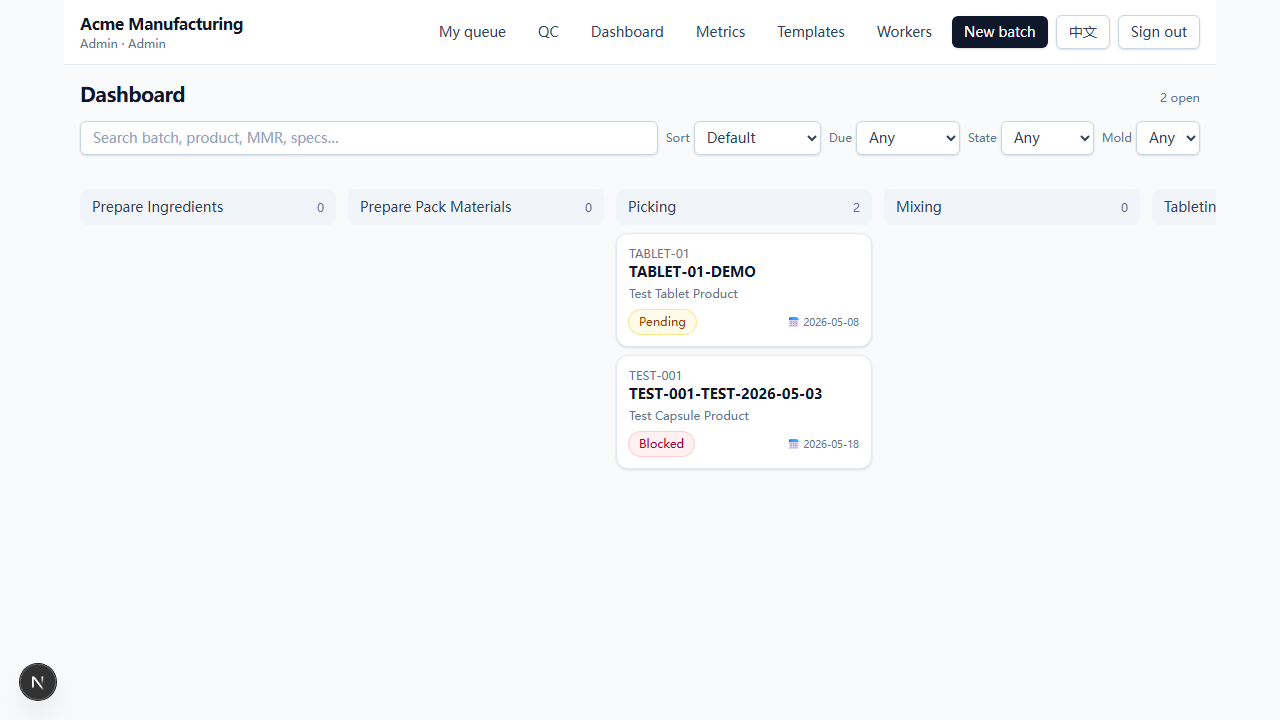

Dashboard kanban #

/manager/dashboard shows up to 200 most-recent open batches as a kanban grouped by current stage.

Click any card to open its batch detail page.

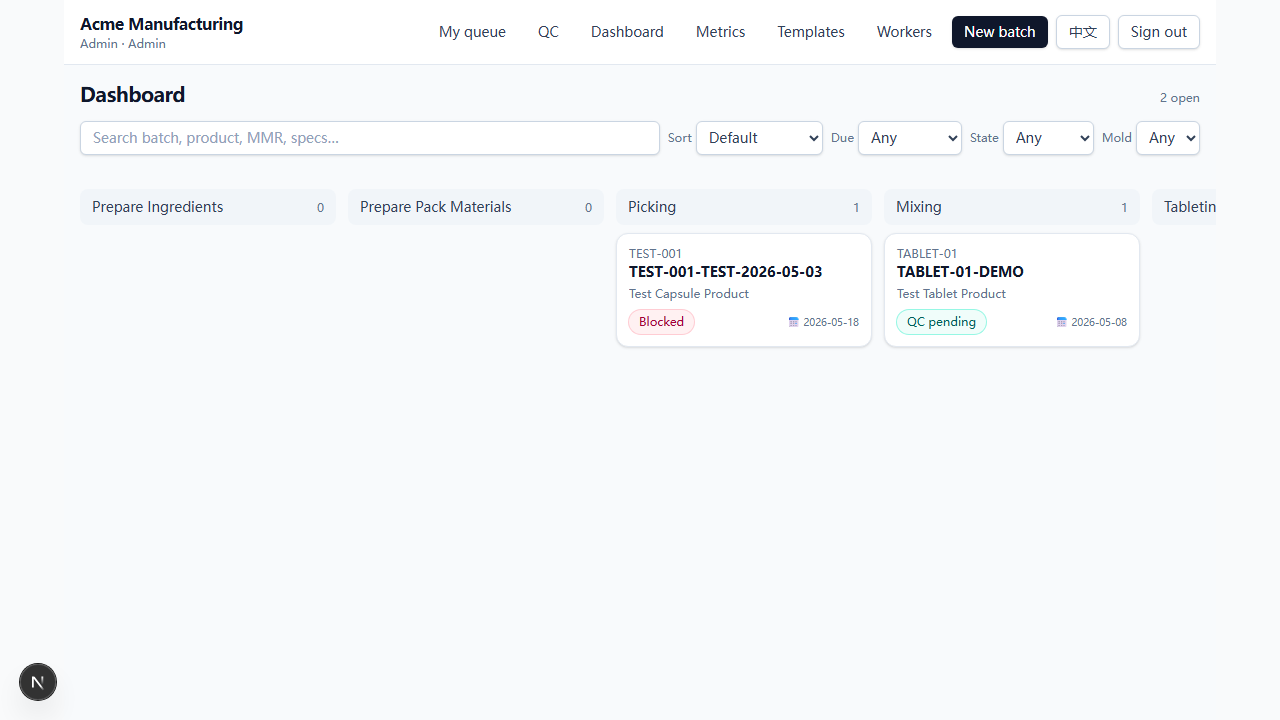

QC badges #

Cards on the dashboard show meaningful status, not just the raw state:

• QC pending (teal) — stage is done, waiting for QC. Belongs to QC, not the manager.
• QC failed — needs review (rose) — most recent QC was Fail and the stage is back at Blocked. Belongs to the manager.

Top scrollbar #

With many stages, the kanban scrolls horizontally. The scrollbar lives above the stage headers (not at the bottom) so it stays in your eye-line on a desktop screen — drag it directly, or trackpad-scroll the kanban and it follows.

See also: Batch detail · Filter bar

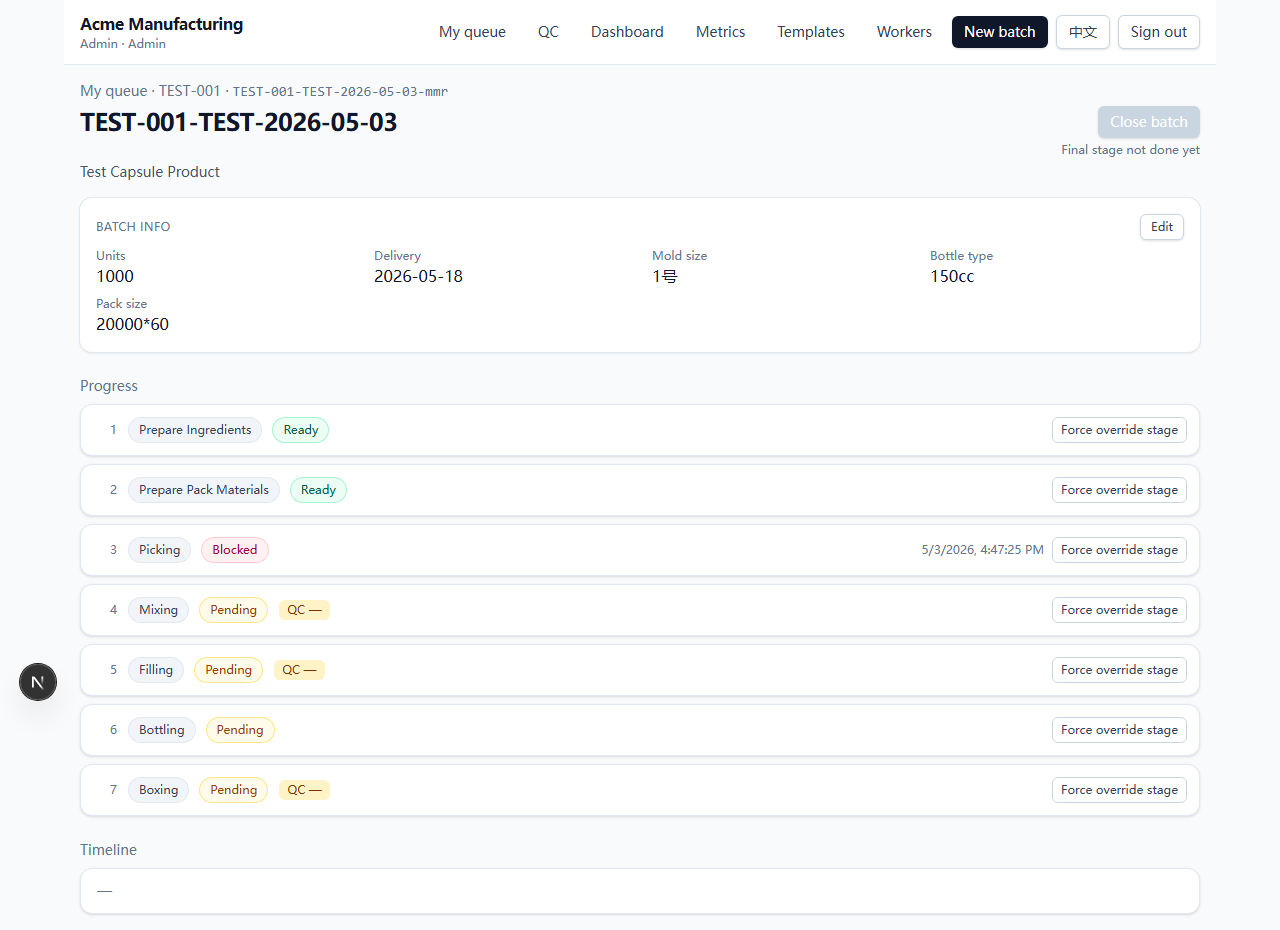

Batch detail #

Header & close batch #

Top of /manager/batches/[id] shows the batch code, product, MMR, and either a Close batch button (with a reason if disabled) or the closed-on timestamp.

Auto-close fires when the final stage is Done with QC clear. Manual close is available when the same conditions are met.

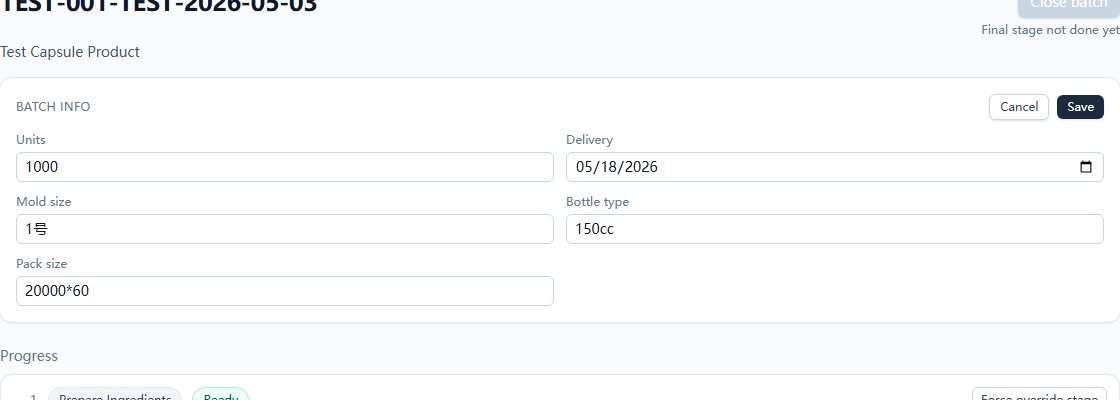

Edit batch info #

The batch info card (units, delivery date, spec values) has an Edit button.

Editable: units, delivery date, and the spec field values. Keys and labels are locked at batch creation — to add a new spec field, edit the underlying template and create a new batch.

Progress list #

Every stage in the route, with state, completion timestamp, QC status, and a Force adjust stage link.

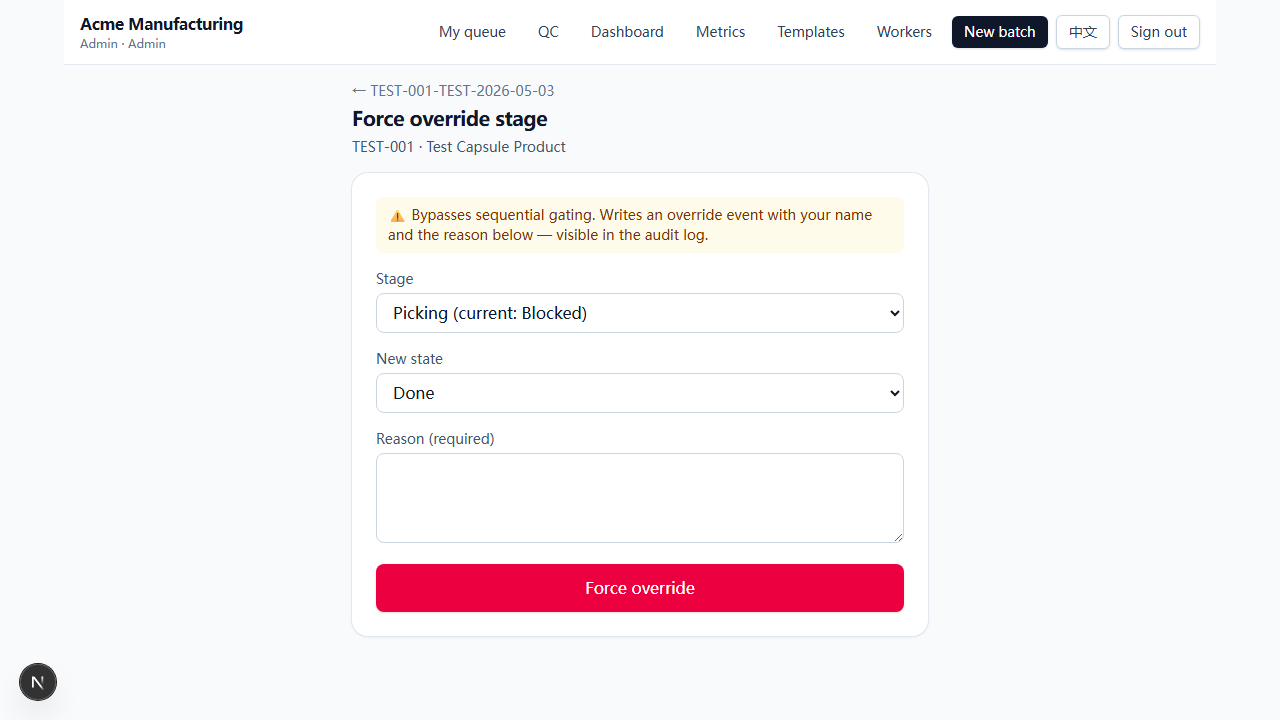

Force adjust (override) #

Click the Force adjust stage link to open the override form. Bypasses sequential gating; reason ≥3 chars required.

Common uses:

• Revert a mistaken Done — pick Pending. The trigger clears stale completed_at, started_at, and qc_status so the row is a clean slate.
• Skip a stage already done in the physical world but not tracked (e.g. when migrating in-flight batches).
• Reopen a closed batch — reverting any stage to non-terminal automatically reopens the batch.

Two events are written to the timeline: a state_change with the admin's name and reason, plus a force_override event for traceability. Both rows record the actual actor.

Audit timeline #

Newest-first, last 100 events. Each row shows the actor, stage, transition, and the optional reason note. Event tones:

• state_change — Start / Done / Issue / Resolve.
• qc_pass — QC accepted.
• qc_fail — QC failed.
• override — Force adjust or auto-reopen.
• batch_closed — Auto-close or manual close.

Auto-reopen on revert #

If reverting a stage breaks the close conditions of an already-closed batch, the batch automatically reopens (closed_at cleared, with an override event labelled "auto-reopen"). Works regardless of which stage is being reverted, not just the final one.

See also: Issue inbox · Audit event kinds

Admin #

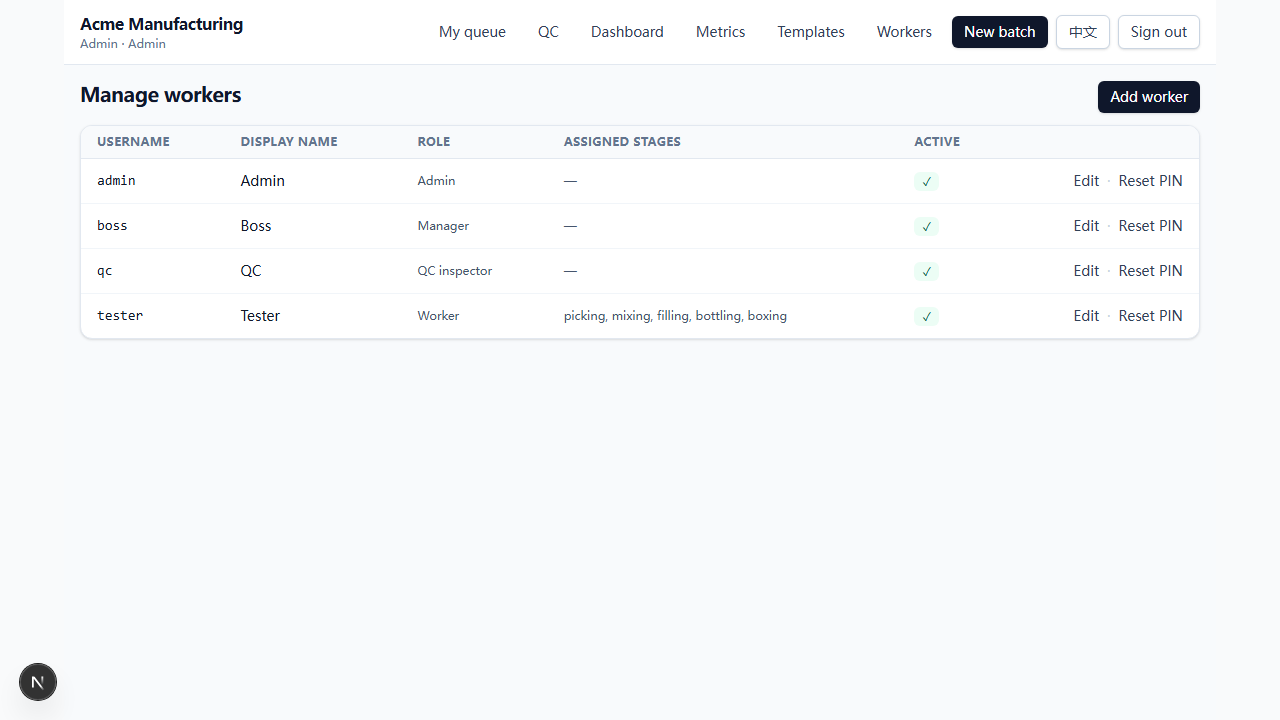

Workers list #

/admin/workers lists every worker in the org with their role, assigned stages (only relevant for the Worker role), and active flag.

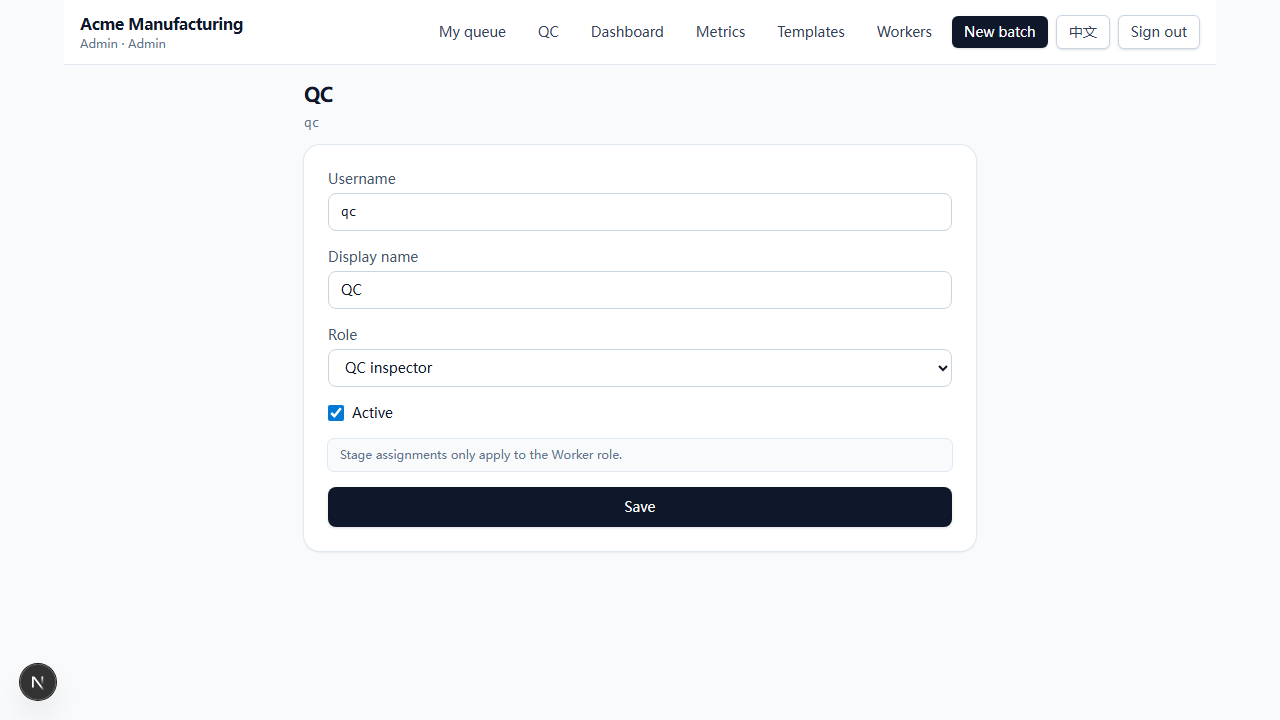

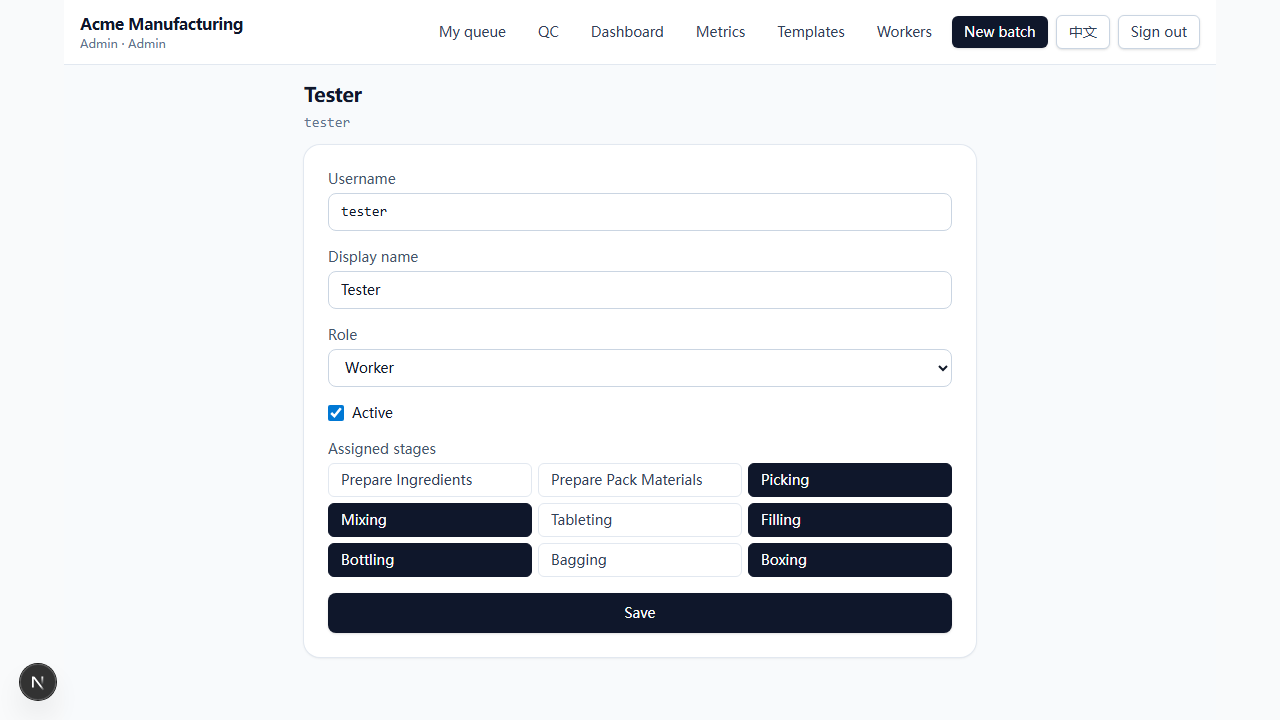

Worker form #

Create or edit a worker: username (lower-case, dots / dashes / underscores allowed), display name, role, and PIN (auto-generated if left blank on create).

Roles & assignments #

The assigned stages grid only appears when the role is Worker. For QC inspector / Manager / Admin the grid is hidden and a hint takes its place.

If the role is changed away from Worker on save, any saved assignments are dropped server-side.

Reset PIN #

Each row has a Reset PIN action. A new 4-digit PIN is generated and shown once on screen — write it down before navigating away. The old PIN is invalidated immediately.

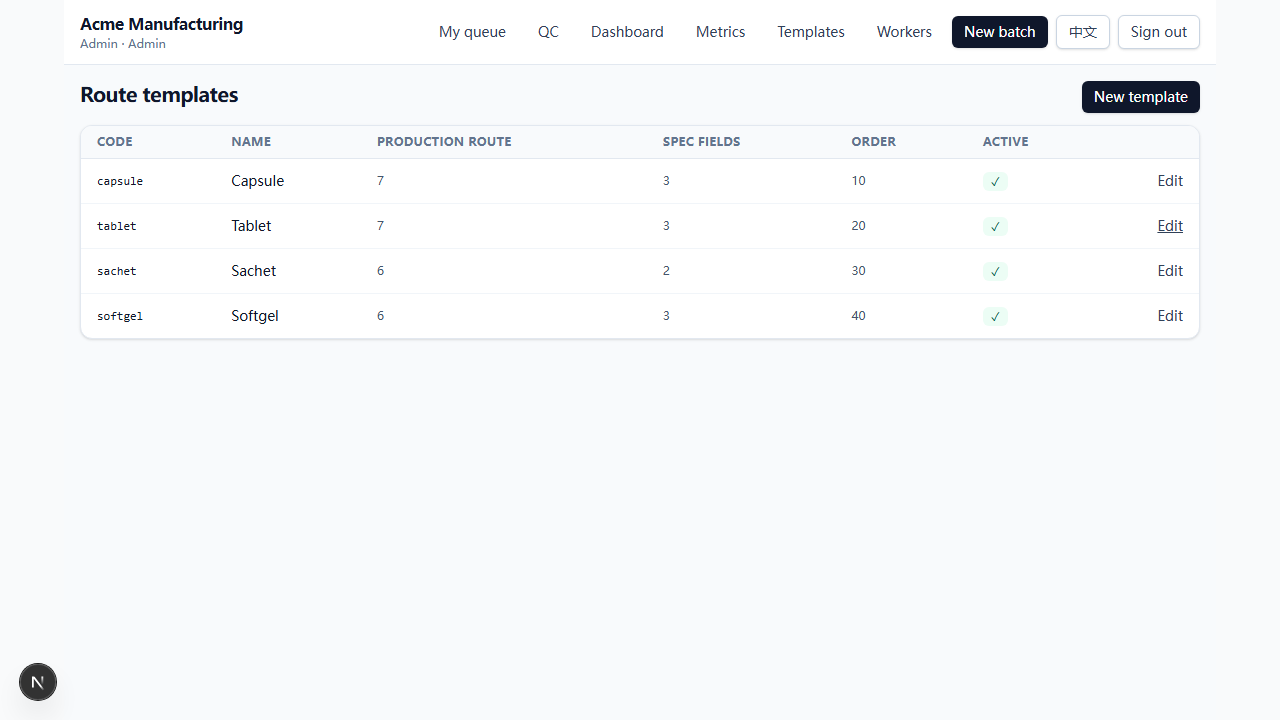

Templates (route presets) #

/manager/presets — the library of route presets used when creating batches. Each preset declares stage codes (in order), which stages need QC, and the spec keys + labels for the batch info card.

Built-in presets: Capsule, Tablet, Sachet, Softgel. You can edit any of them or add new presets — for example a separate route for a tincture or a powder.

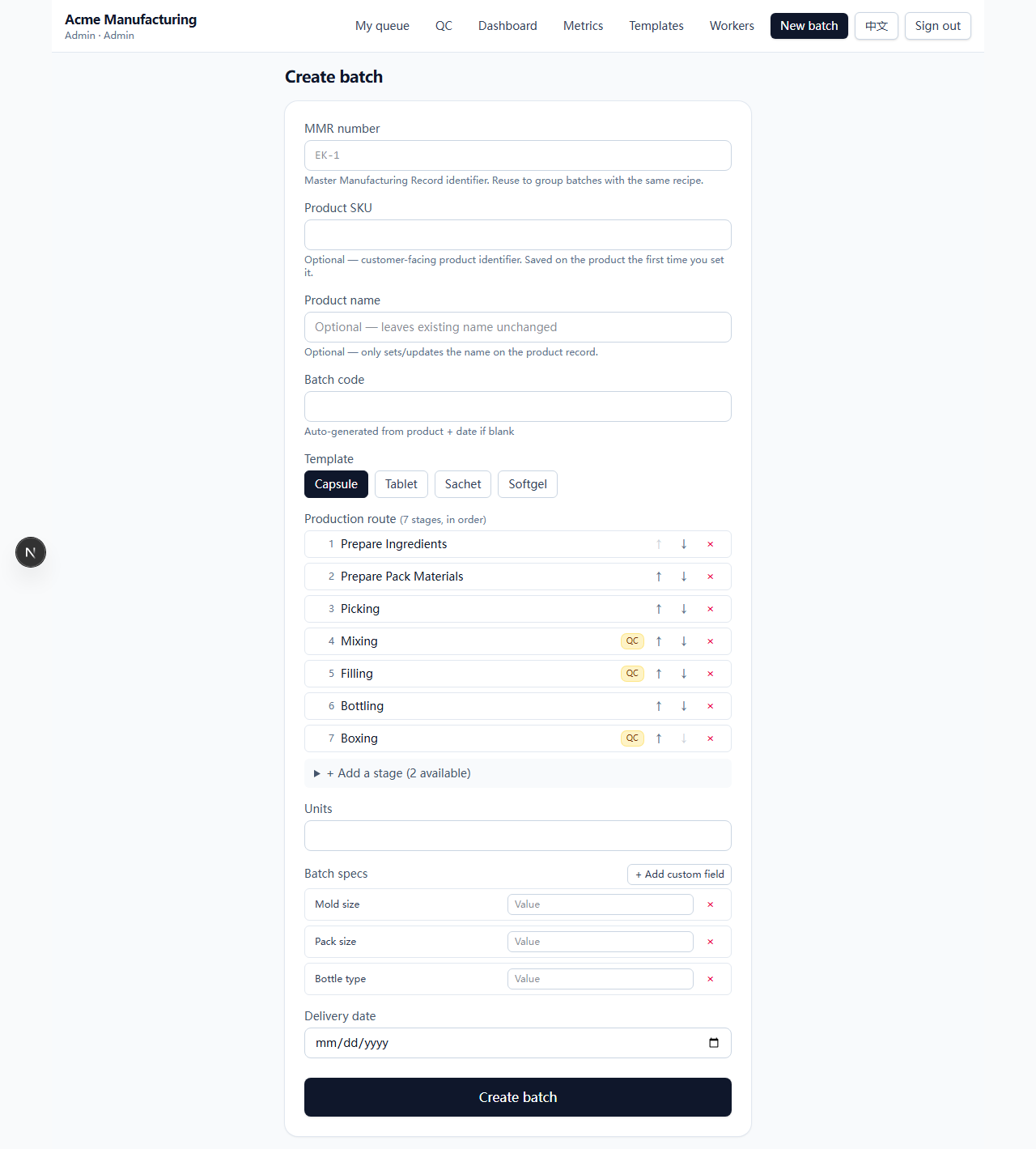

New batch #

Start a batch from a template.

1. Pick a product code (or type a new one — it'll auto-create the product).
2. Pick a template — this seeds the route + the spec fields you can fill in.
3. Fill in units + delivery date and any spec values. Custom fields can be added.
4. Submit. Behind the scenes the form upserts the product, creates a fresh MMR for the batch, and seeds the batch_stage_progress rows — every stage starts Pending, including warehouse prereqs (Ingredients / Pack Materials), which the warehouse has to Start and Mark Done per batch.

Members #

/admin/members manages email accounts that share access to this org. Invite new members by email; they get a sign-up link via Supabase Auth and choose their own password.

Members are bound to the org once they accept. They have an org-level role (owner or admin), separate from worker roles.

See also: Templates · New batch

Filters, sort, search #

The same filter bar lives at the top of /queue and /manager/dashboard.

Filter bar #

Full-text search #

?q=… — case-insensitive, debounced 200ms. Indexes:

• Batch code (e.g. TEST-001-2026-05-03)
• Product code and product name
• MMR code
• Every spec value (mold size, bottle type, pack size, sachet weight, …)
• Stage label in the current locale

Sort + direction #

The ↑ / ↓ arrow next to the sort dropdown flips direction. Hidden when sort is "Default".

Due-in-N-days #

?due=N — show only batches with delivery_date ≤ today + N days. Options: 3 / 7 / 15 / 30 days. Batches without a delivery date are excluded under any due filter.

Stage / State / Mold #

• Stage — populated from stages currently visible. Pick "Mixing" to focus on mixing-stage cards only.
• State — populated from states currently visible. On the worker queue this surfaces (Pending, In Progress, Blocked, etc.); the manager inbox is always Blocked-only so the State dropdown is hidden there.
• Mold — distinct mold values across visible batches (e.g. 0号, 1号). Batches without a mold_size spec are excluded.

URL state #

Every filter is in the URL search string. That means: refresh-safe, bookmarkable, and immune to the realtime channel auto-refreshing the page out from under you. A Clear button appears once any filter is active and wipes everything back to the bare path.

See also: My queue · Dashboard kanban

Reference #

State codes & default labels #

Stage codes #

ingredients (Prepare Ingredients), pack_materials (Prepare Pack Materials), picking, mixing, tableting, filling, bottling, bagging, boxing.

Templates declare which stages to use and in what order. Not every template uses every stage — Capsule skips Tableting and Bagging; Sachet skips Tableting, Filling, and Bottling.

Audit event kinds #

Troubleshooting #
